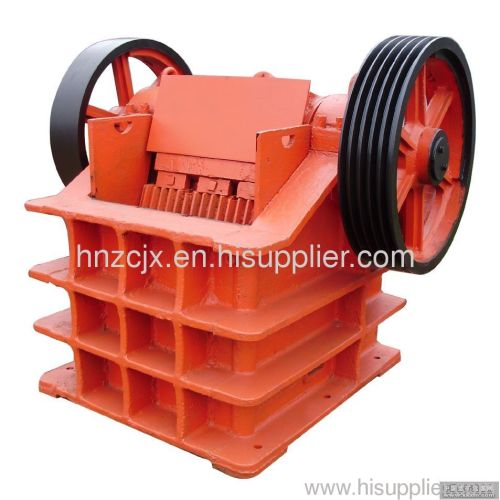

jaw crusher from China manufacturer - Henan Zhongcheng Road&Bridge Co.,Ltd

Price:	9800.0~12680.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Henan, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PE400*600

Production Capacity: 6 sets/month

Delivery Date: According to your quantity

Capacity: 30~50 t/h

Main shaft rotary speed: 275 r/min

Overall dimensions: 1700*1732*1392 mm

Quality: ISO9001:2008

Means of Transport: Ocean,Land

Packing: No packing or as you wish

Brand Name: Zhongcheng

Max feed size: 340 mm

Motor power: 30 kw

Weight: 7200 Kg

Price: Competitive price

1.Stone jae crusher machine
2.Easy installing crusher
3.Competitive price crusher
4.Quite short delivery time
5.With ISO9001

Easy Installing Stone Jaw Crushing Machine

1.Working principle of the stone crushing machine:

Jaw crusher's main structure is rack, eccentric shaft, the pulley, flywheel, moving jaw, side shield, elbow board, elbow, the rear plate; transfer gap screw, spring reset; fixed plate and the activities of jaw board. And bracket also plays an important role in insurance. The machine's leather belt and wheel are driven by the electric motor, and then the movable jaw begins to move up and down by the eccentric shaft. When the movable jaw moves from bottom to top, the angle between fixed jaw and movable jaw becomes bigger, then promotes the active board close to the fixed board. At the same time materials are extruded, molded, multi-roller crushed etc.

When the movable jaw moves from top to bottom, the angle between fixed jaw and movable jaw becomes smaller, under the function of drag, rod and spring, the movable jaw plate deviate from the fixed jaw plate. At this moment the crushed materials are discharged from the bottom outlet of the crushing cavity. With the continuous rotation motor, the crusher is crushing and nesting cyclically.

2.Performance characteristics of the stone crushing machine:

%1. Deep broken cavity, no dead zone, large feeding capacity and output.

%2. Large crushing ratio, uniform size of products.
%3. Safe and reliable lubrication system, convenient replacement of parts

%4. Simple structure, reliable work, low operating costs.

%5. Energy-saving equipment, single machine can save energy 15% -30%.

%6. Large adjustment range of the nesting, it can meet different users’ requirements.

%7. Low noise and less dust.
